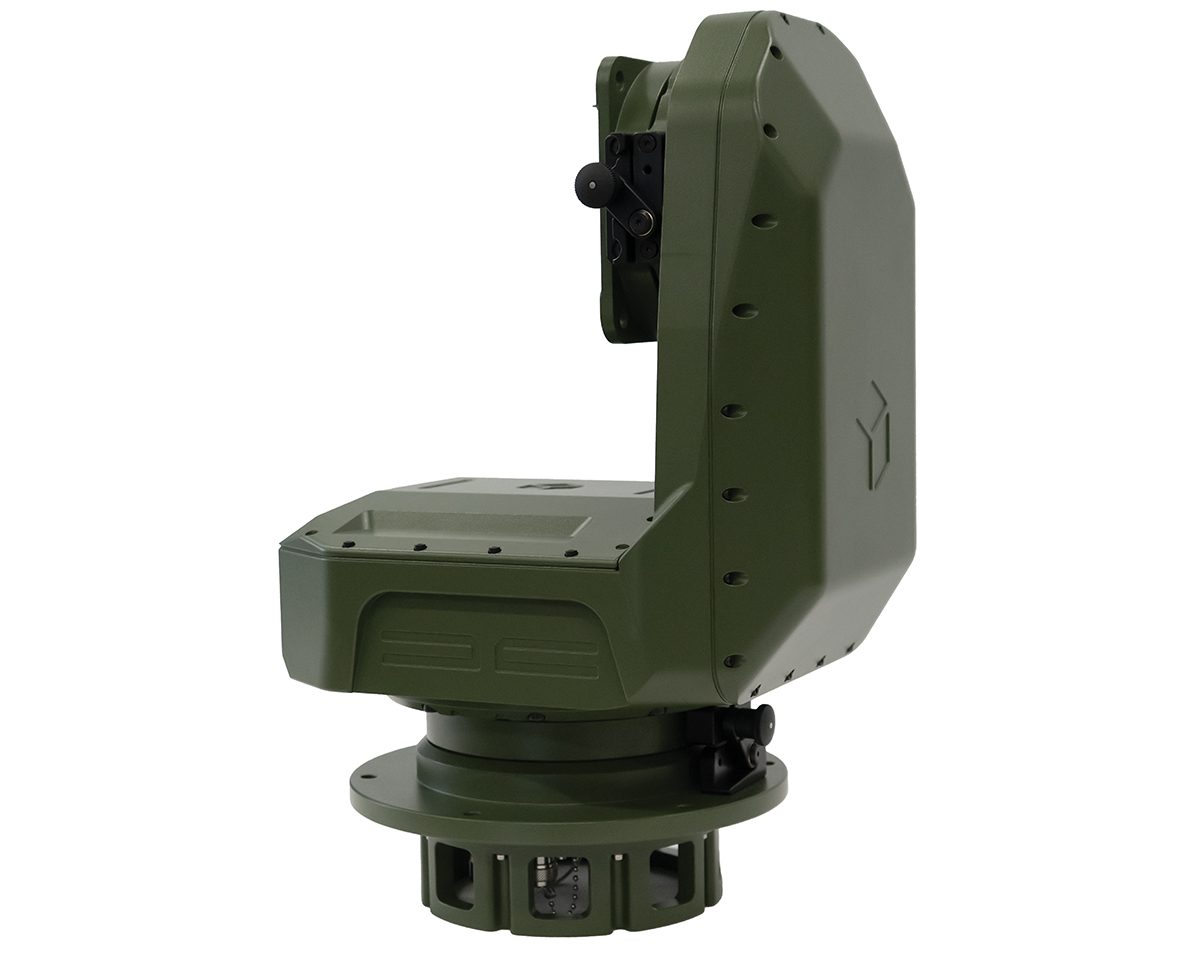

SPECIFICATIONS

• Load capacity / Torque: 10 kg / 6 Nm
• Weight: 17 kg
• Dimensions (H x W x L): 444 x 286 x 240 mm
• Materials: Aluminium
• Protection / IP rating: IP 64
• Operating temperature: -32°C to +55°C
• Pan axis range / angle: n x 360°
• Pan axis speed: 0.001°/s – 400 °/s
• Tilt axis range / angle: -30°, +70° (±90° – on request)
• Tilt axis speed: 0.001°/s – 400 °/s

• Accuracy: 0.002°
• Backlash: None
• Stabilization: Yes
• Brake: 24 VDC
• Operating voltage: 24 VDC
• Maximum power: 800 W
• Communication to the unit: Eth 10/100 Base-T (UDP), RS-232, RS-485/422
• Control protocol: DC-PT protocol DCP, PelcoD
• Standard compliance: MIL-STD-810G, MIL-HDBK-217-F, MIL-STD-461-F, MIL-STD-1275-D
